Toyota Supra A90/A91 20-24 / BMW G-Series B58 19-24 Charge-Air Cooler Manifold
CSF - 8200/B

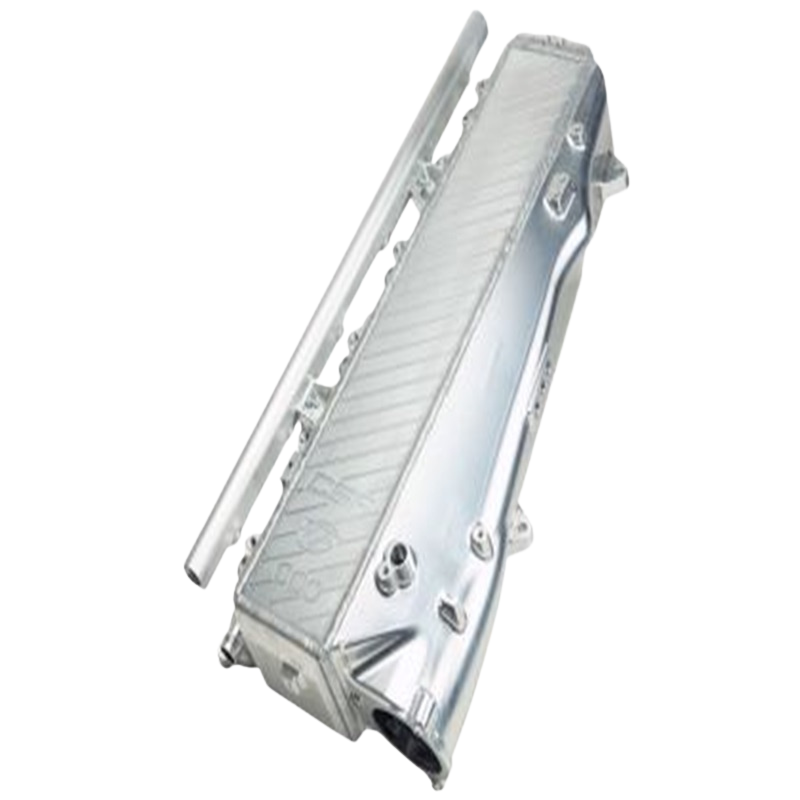

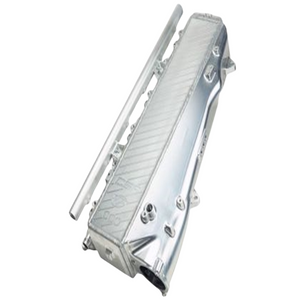

A90/A91 Toyota Supra & BMW G-Series Charge-Air Cooler Manifold
With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Super Manifold allows B58 owners to maximize performance.
CSF, The Cooling Experts, have been serving the US aftermarket for almost 4 decades. With over 30 million units sold, CSF is your exclusive source for Radiators, Condensers, Intercoolers, Inverter Coolers, Racing Radiators and Pressure Caps.

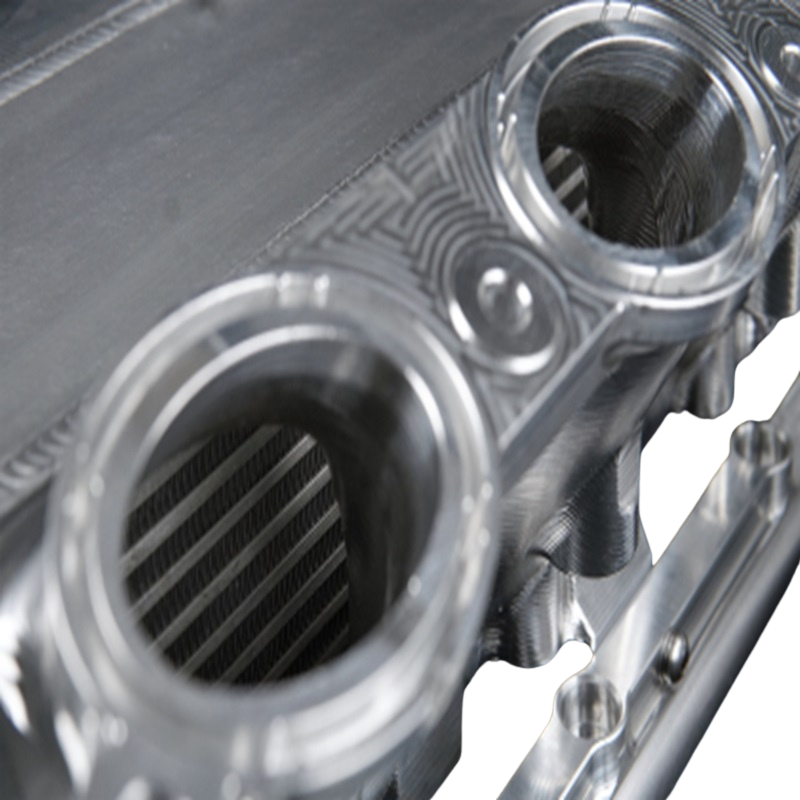

- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)
- Significantly Lower Pressure Drop Across the Core Compared to OEM
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change
- Counter Balanced Design for Optimized Airflow

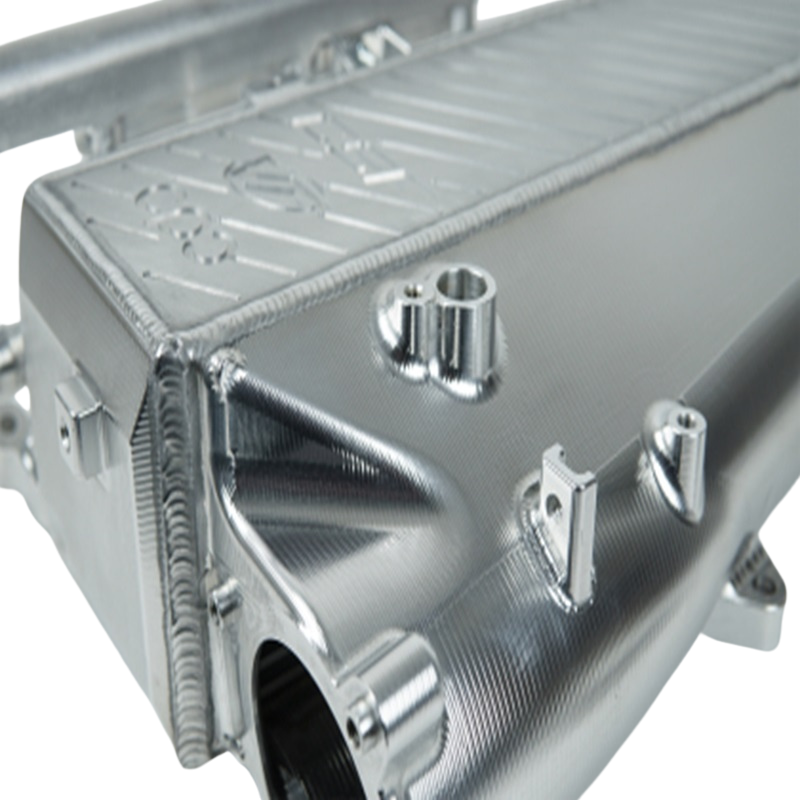

- Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters

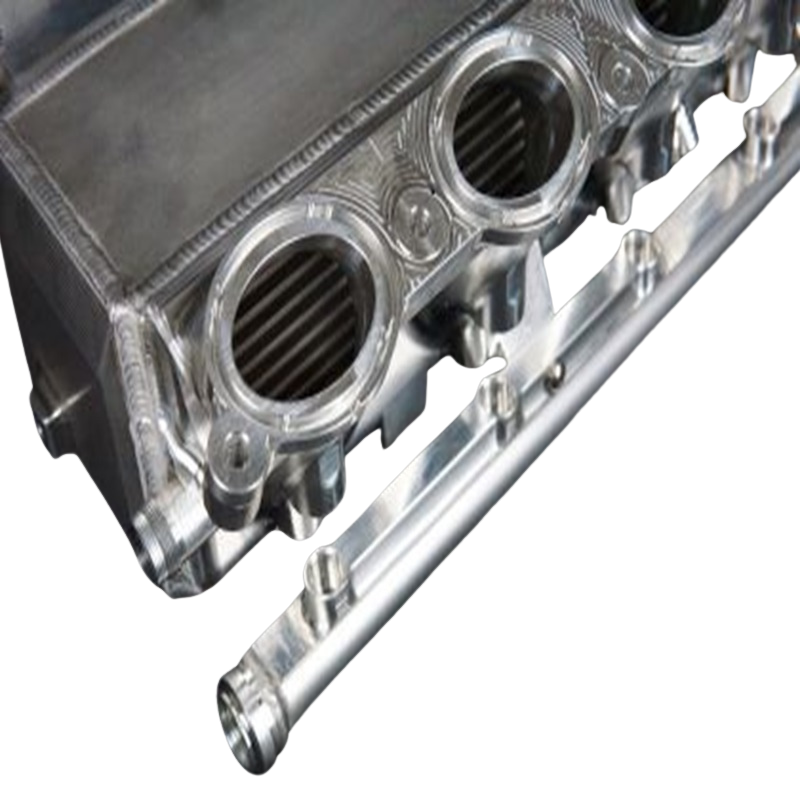

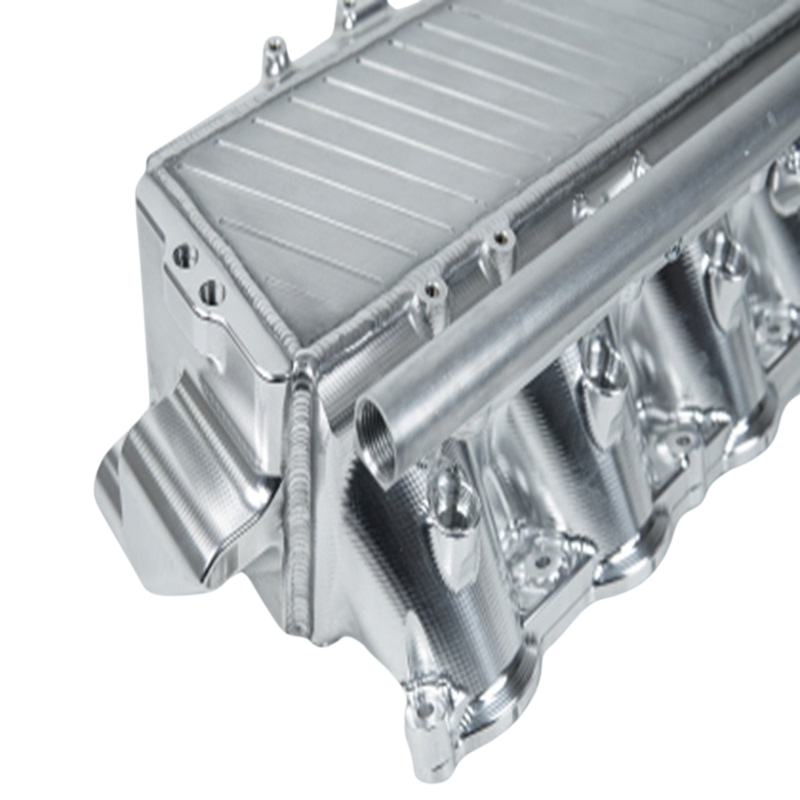

- Included Optional Fuel Rail for Top Feed Port Injection
- Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
- Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
- Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
- Plug-and-Play design, Requiring No Modifications to Install

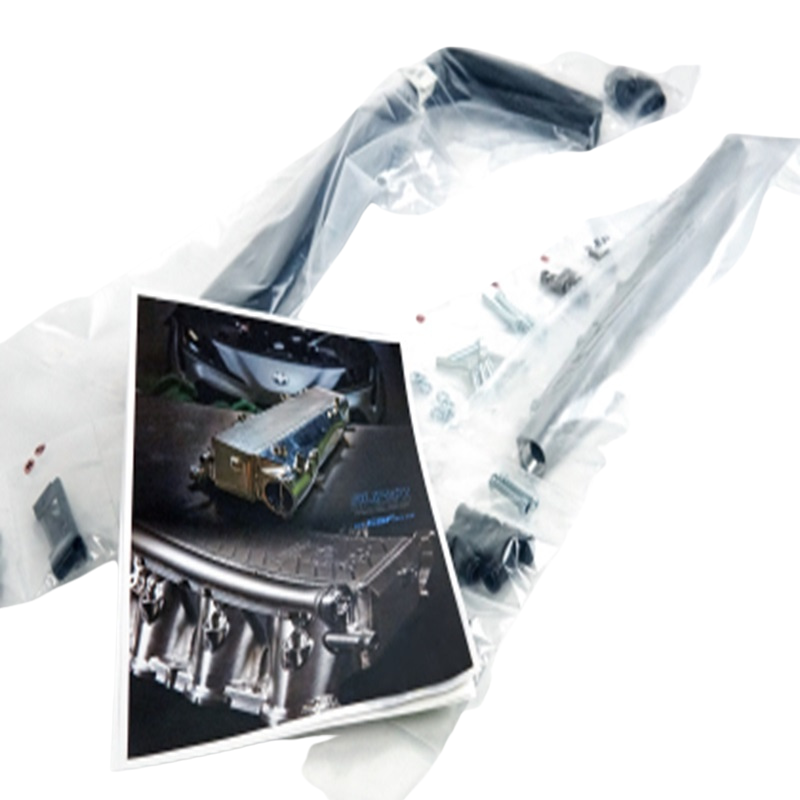

- Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
- Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)

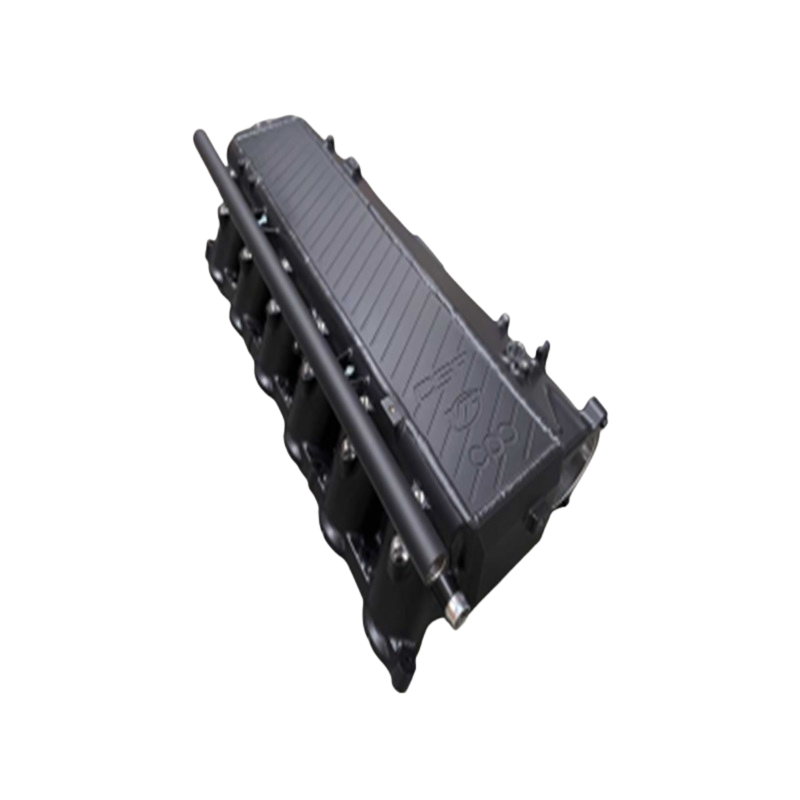

- Comes Finished in Raw Billet Aluminum (available in custom finishes) - Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process.
- The CSF manifold is not designed to operate above 60 PSI. Users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited Warranty.
Fitment:
2021 Toyota GR Supra 3.0L (A91 Edition)
2020-2023 Toyota GR Supra 3.0L (Base)
2020 Toyota GR Supra 3.0L (Launch Edition)
2020-2023 Toyota GR Supra 3.0L (Premium)
2022+ BMW M240iX (G42)
2022+ BMW M240iX (G42)
2022+ BMW M240iX (G42)
2018+ BMW 540i (G30)
2018+ BMW 540iX (G30)
2018+ BMW 540iX (G31)
2018+ BMW 630iX (G32)
2018+ BMW 640i (G32)
2018+ BMW 640iX (G32)
2018+ BMW 740i (G11)
2018+ BMW 745e (G11)
2018+ BMW 740i (G12)
2018+ BMW 740iX (G12)
2018+ BMW 740Li (G12)
2018+ BMW 740LiX (G12)
2018+BMW 745eX (G12)
2018+ BMW 745Le (G12)
2018+ BMW 745LeX (G12)
2018+ BMW 840i (G14)
2018+ BMW 840iX (G14)
2018+BMW 840i (G15)
2018+ BMW 840iX (G15)
2018+ BMW 840i (G16)
2018+ BMW 840iX (G16)
2018+ BMW X3 M40iX (G01)
2018+ BMW X4 M40iX (G02)
2018+ BMW X5 45i (G05)
2018+ BMW X5 45iX (G05)
2018+ BMW X5 45eX (G05)
2018+ BMW X6 40i (G06)
2018+ BMW X6 40iX (G06)
2018+ BMW X7 40iX (G07)
2018+ BMW X3 M40iX (G01)
2018+ BMW X4 M40iX (G02)
2018+ BMW X5 45i (G05)
2018+ BMW X5 45iX (G05)
2018+ BMW X5 45eX (G05)
2018+ BMW X6 40i (G06)
2018+ BMW X6 40iX (G06)
2018+ BMW X7 40iX (G07)
