Toyota 2ZZ-GE Fuel Rail
Click here to download installation instructions (PDF)
PORTS AND FITTINGS
The end ports of this fuel rail are tapped for 8AN ORB. A center port for the factory fuel pulse damper is also included.
8AN ORB Adapter Fittings
8AN ORB Direct Mount Regulators
Fuel Pressure Gauge Adapters
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
This high volume fuel rail works on all 2ZZ-GE engines. Both ends of the rail are tapped to 8AN ORB female threads. These ports use positive o-ring seals instead of tapered pipe threads which commonly damage aluminum threads and lead to fuel leaks. The center port accommodates the 2ZZ-GE fuel pulse damper (not included) from the OEM fuel rail. This helps alleviate all high frequency pressure fluctuations.
The fuel rail was designed to clear the intercooler mounting boss (Exige-S/2-Eleven only) as best as possible without sacrificing fuel flow. Some grinding may still be necessary.
FEATURES
-Billet aluminum construction
-Anodized surface finish for corrosion resistance
-Stealth laser etched logos pre anodizing
-End Ports: 3/4-16 Female Thread (-8AN)
-Works with factory and aftermarket injectors
-Easily converted to a pressure regulated return system
-Fits under the factory fuel rail cover
-Supercharged Lotus intercooler boss remains functional
FUEL INJECTOR COMPATIBILITY
This fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’.
CONFIGURATIONS

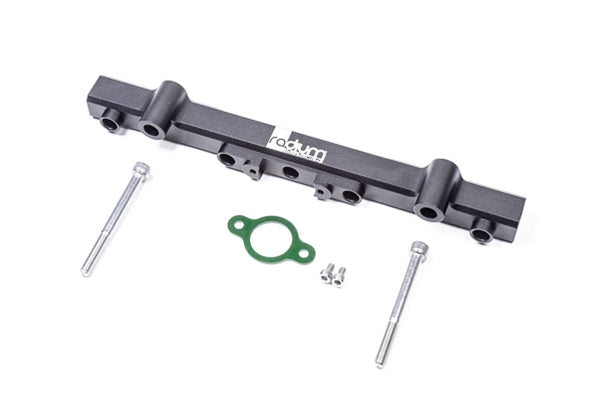

20-0012-01 FUEL RAIL, TOYOTA 2ZZ-GE
This option includes the fuel rail and mounting hardware. The OEM fuel pulse damper bracket and associated screws are included as well.

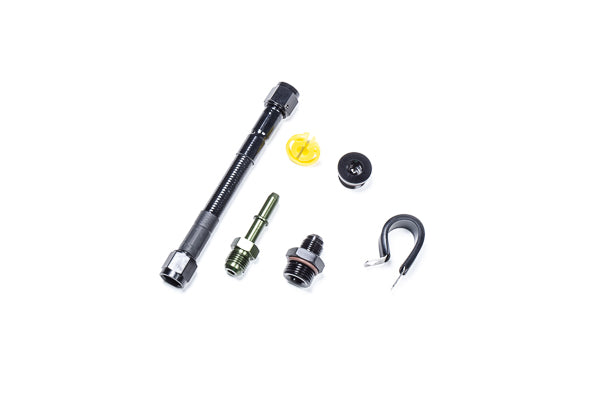

20-0012-PK Fuel Rail Plumbing, Toyota 2ZZ-GE
This kit includes the fuel rail plumbing components shown below, allowing easy hookup with the factory fuel piping.
