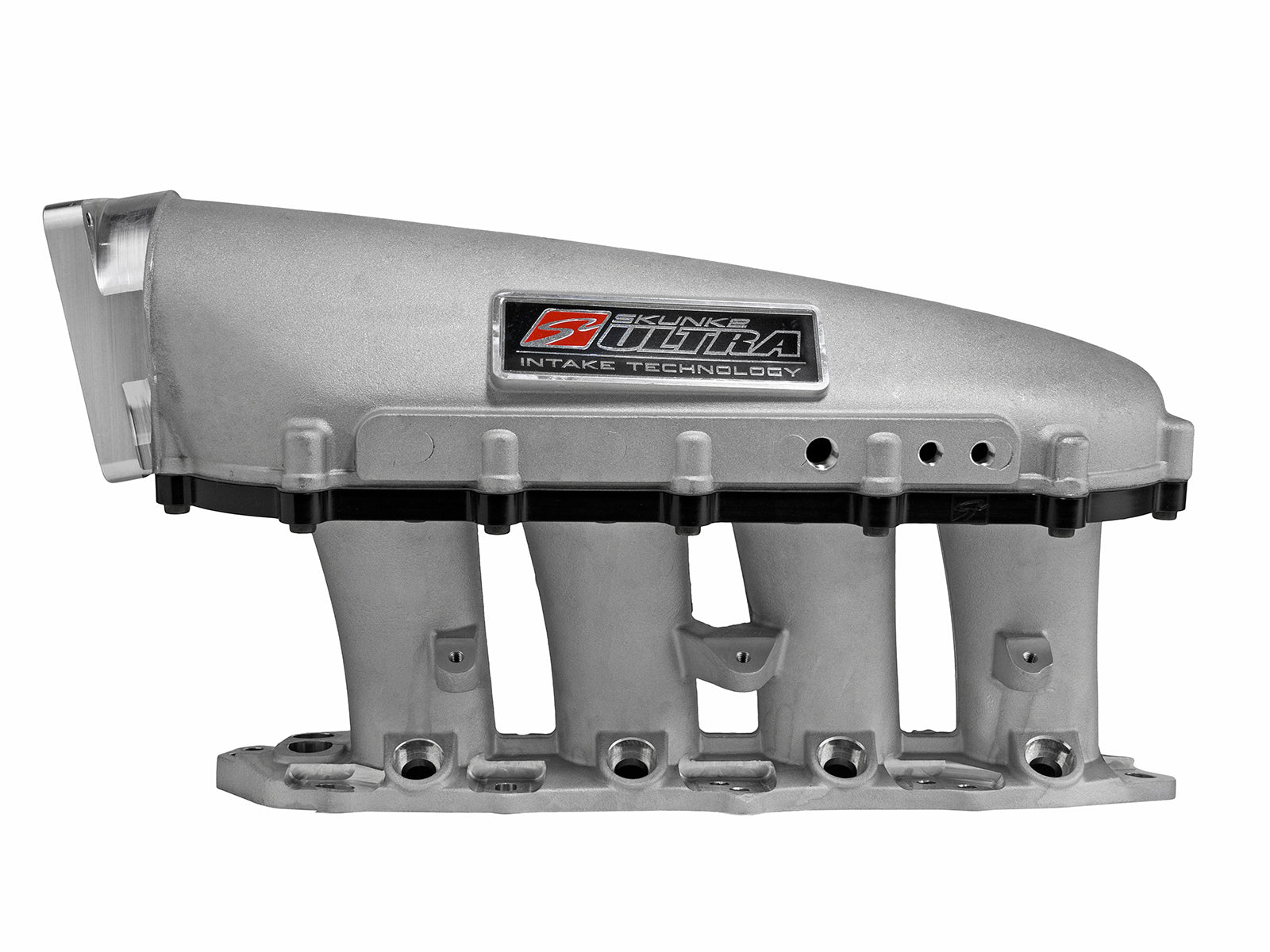

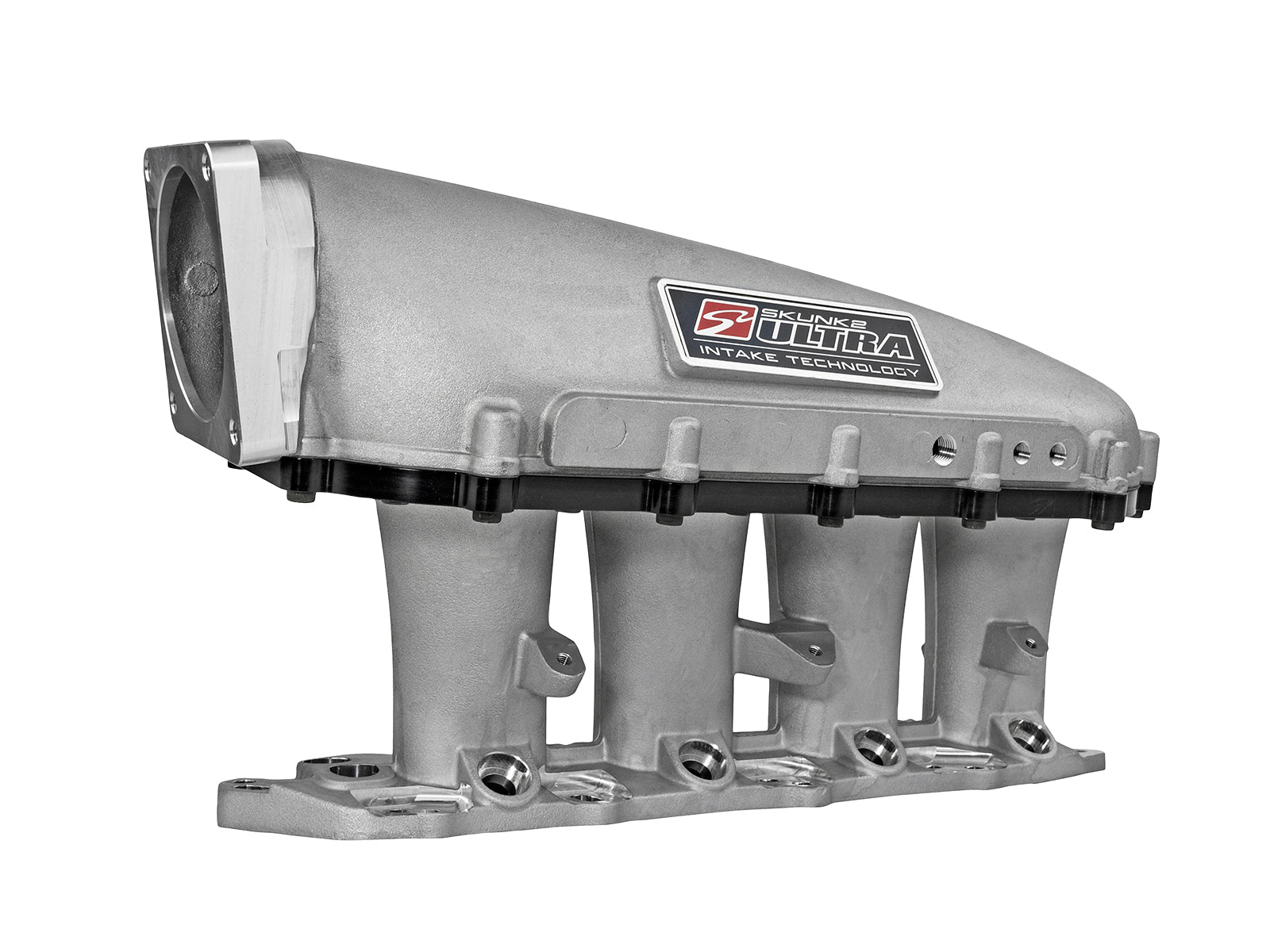

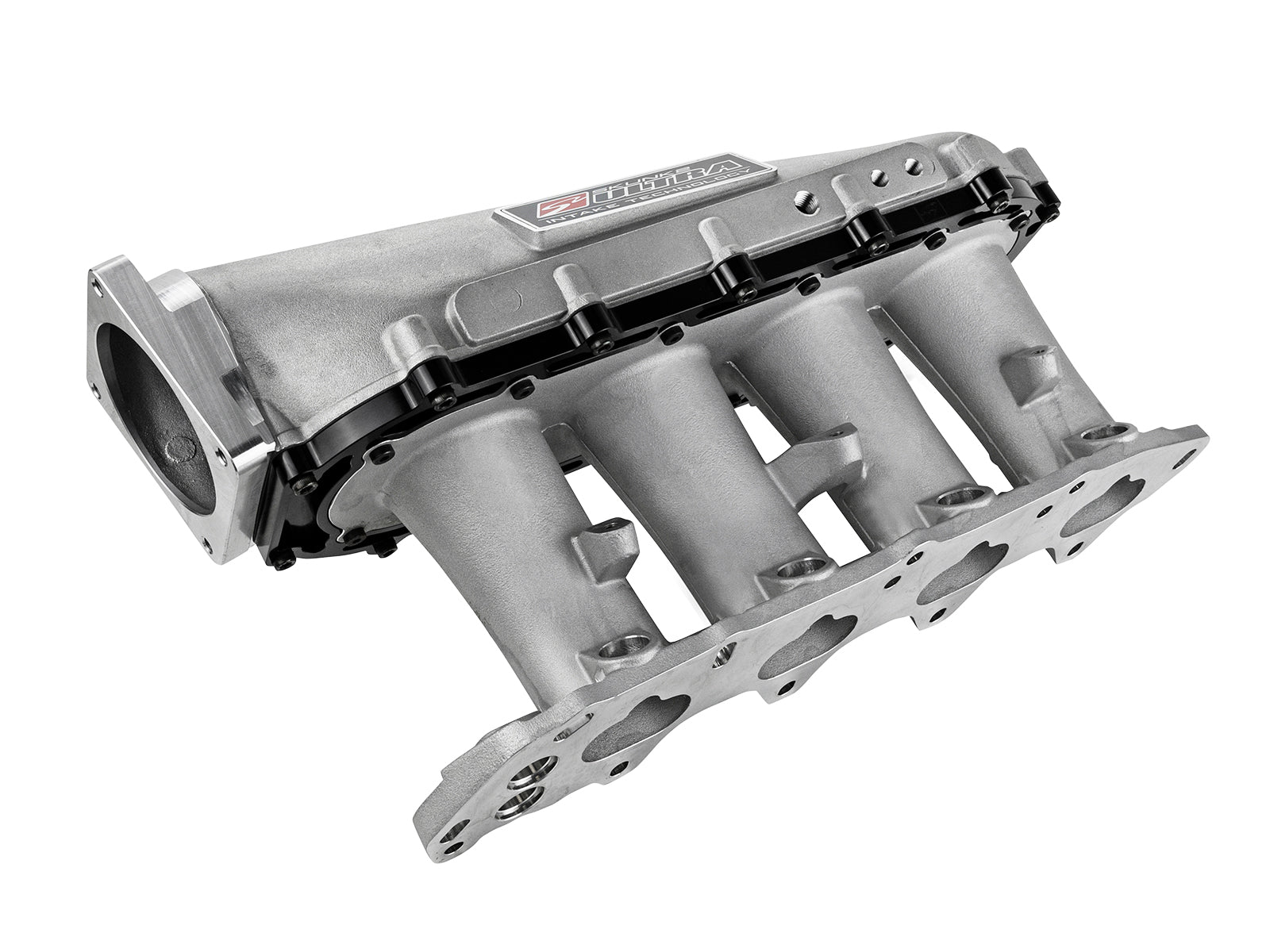

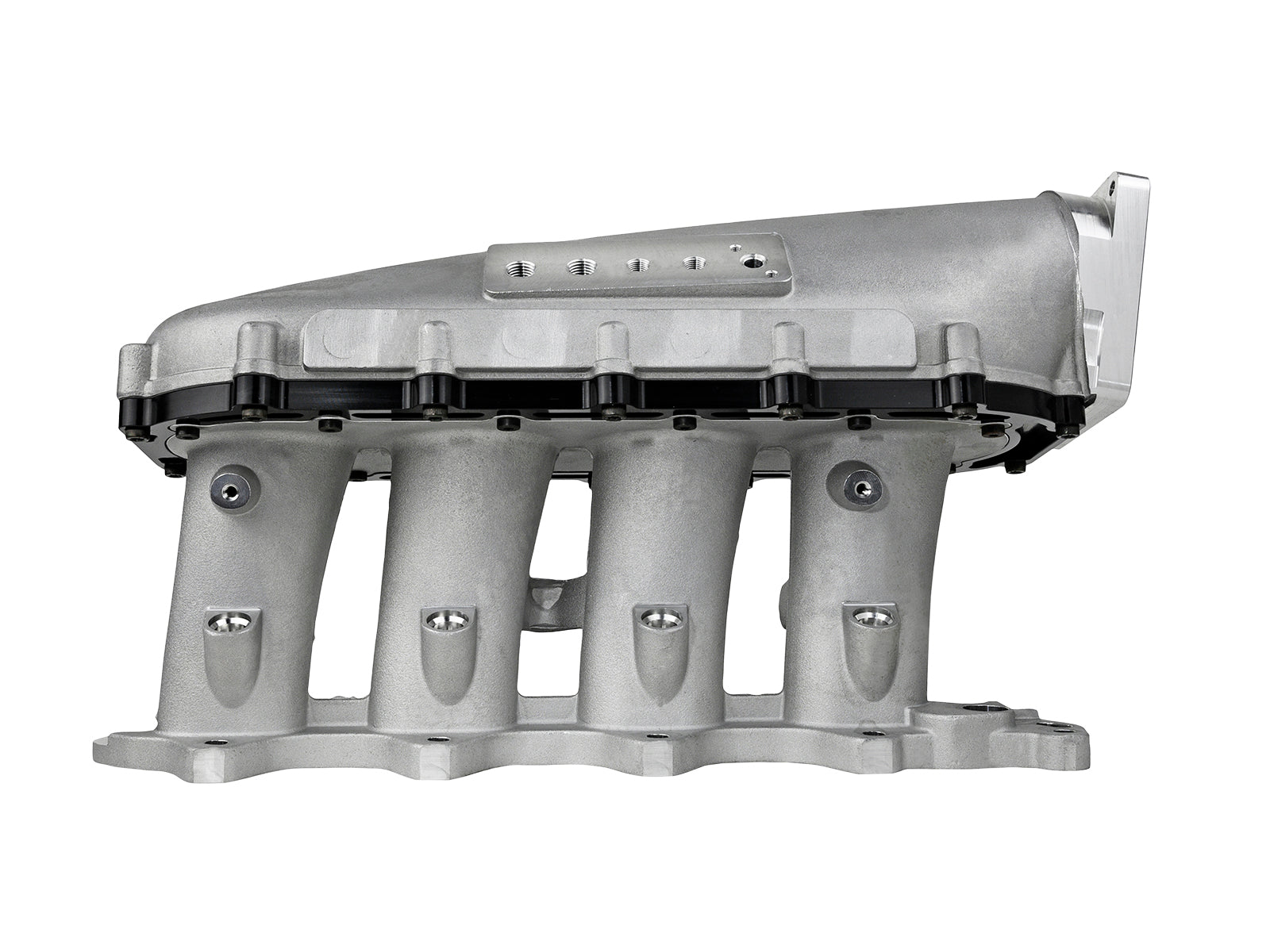

Ultra Series Race Intake Manifold with Black Spacer - Honda B Series VTEC

Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads!

The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.

Features & Benefits

• Modular 3 Piece Design w/ Removable Plenum
• 3.5L Plenum Volume up to 600 HP (N/A and Forced Induction)
• 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
• 6.5” Tilted & Tapered Hi-Velocity Runners
• Raised 87mm Velocity Stacks
• Generously Cast Runner Walls for Porting
• Provisions for Secondary Fuel Rail & Injectors

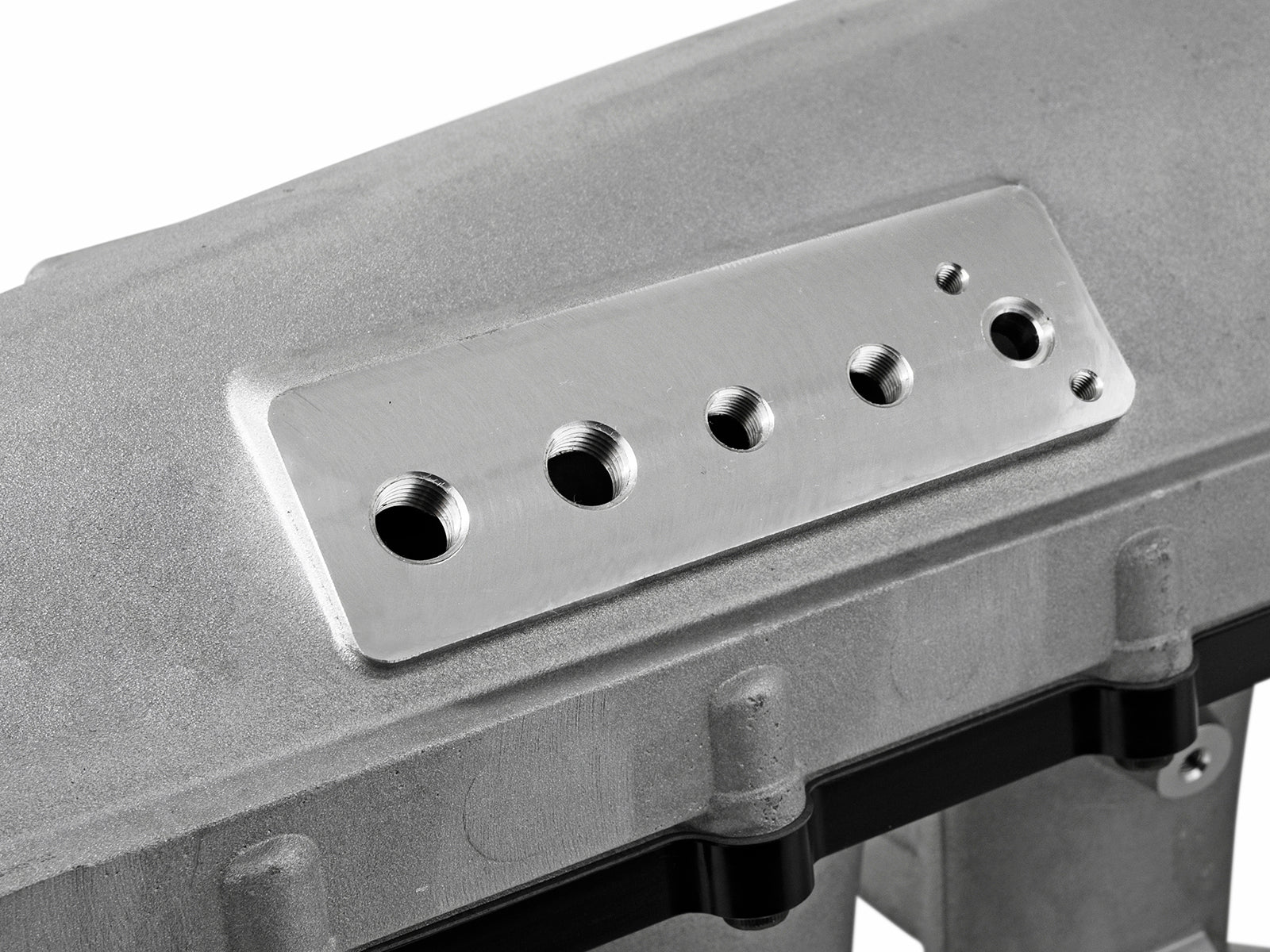

• 4 x 1/8” NPT, 2 x 1/4” NPT and 1 x OEM AIT Port

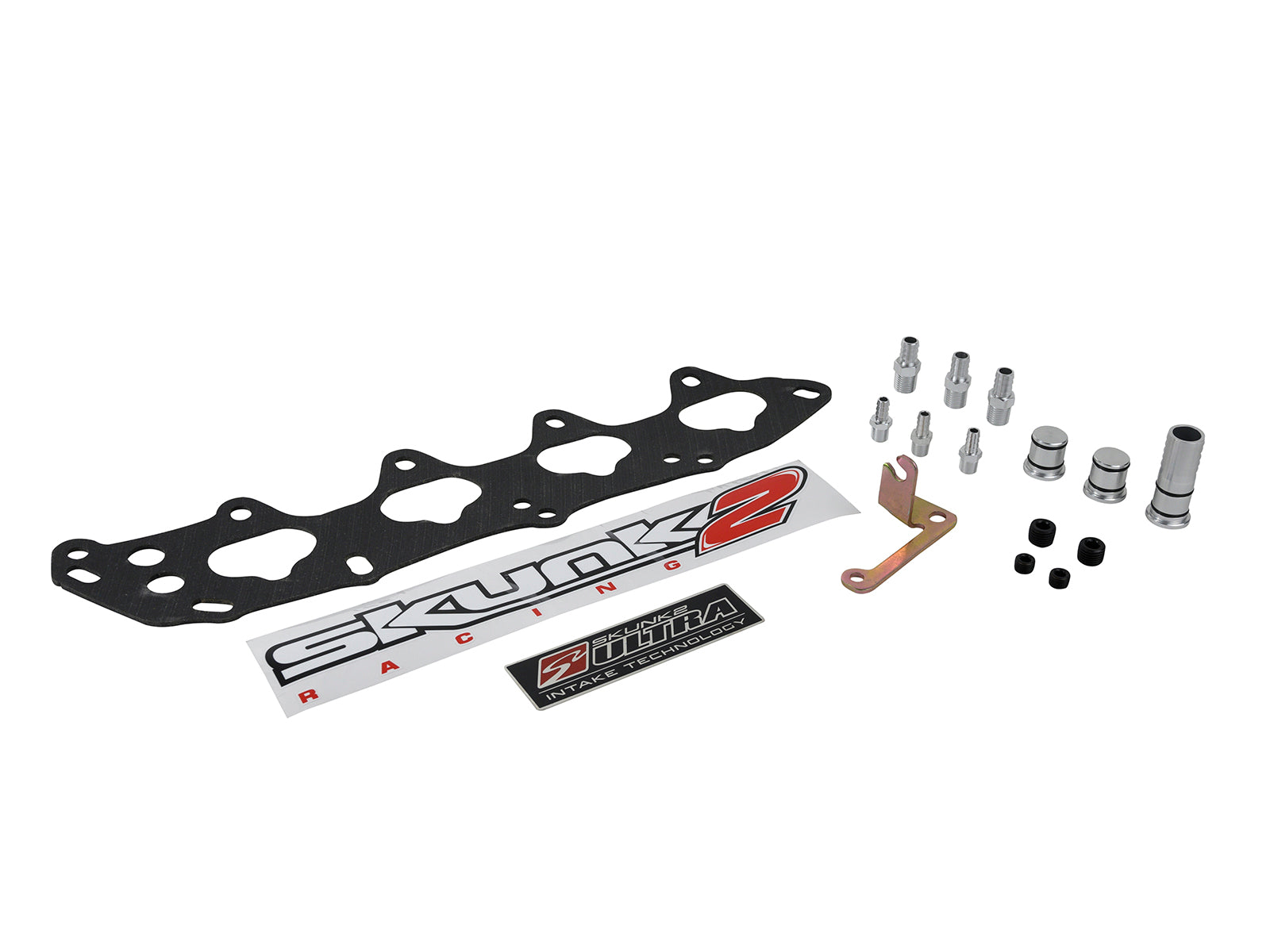

• Includes Thermal Intake Manifold Gasket and Hardware

Notes

Fitment & Specs

• 1999 - 2000 Honda Civic (1.6L Si)

• 1994 - 1995 Honda Del Sol (1.6L VTEC)

• 1994 - 2001 Acura Integra (1.8L GS-R/Type R)
