Billet Drop In Oil Pan Baffle - Honda / Acura K Series
Billet Drop In Oil Pan Baffle - Honda / Acura K Series
Billet Drop In Oil Pan Baffle - Honda / Acura K Series
Billet Drop In Oil Pan Baffle - Honda / Acura K Series
Billet Drop In Oil Pan Baffle - Honda / Acura K Series
Billet Drop In Oil Pan Baffle - Honda / Acura K Series
Billet Drop In Oil Pan Baffle - Honda / Acura K Series
Billet Drop In Oil Pan Baffle - Honda / Acura K Series

Billet Drop In Oil Pan Baffle - Honda / Acura K Series

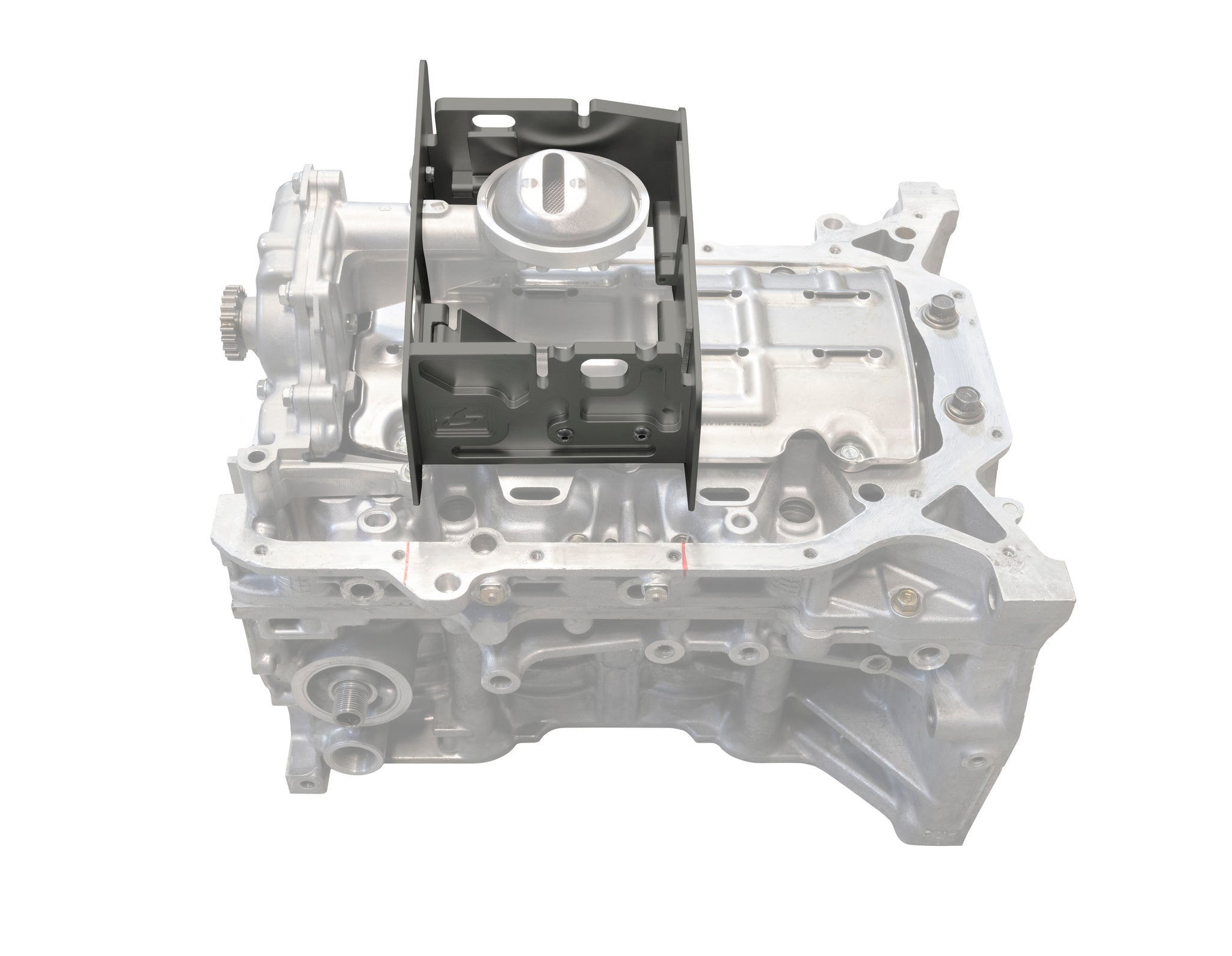

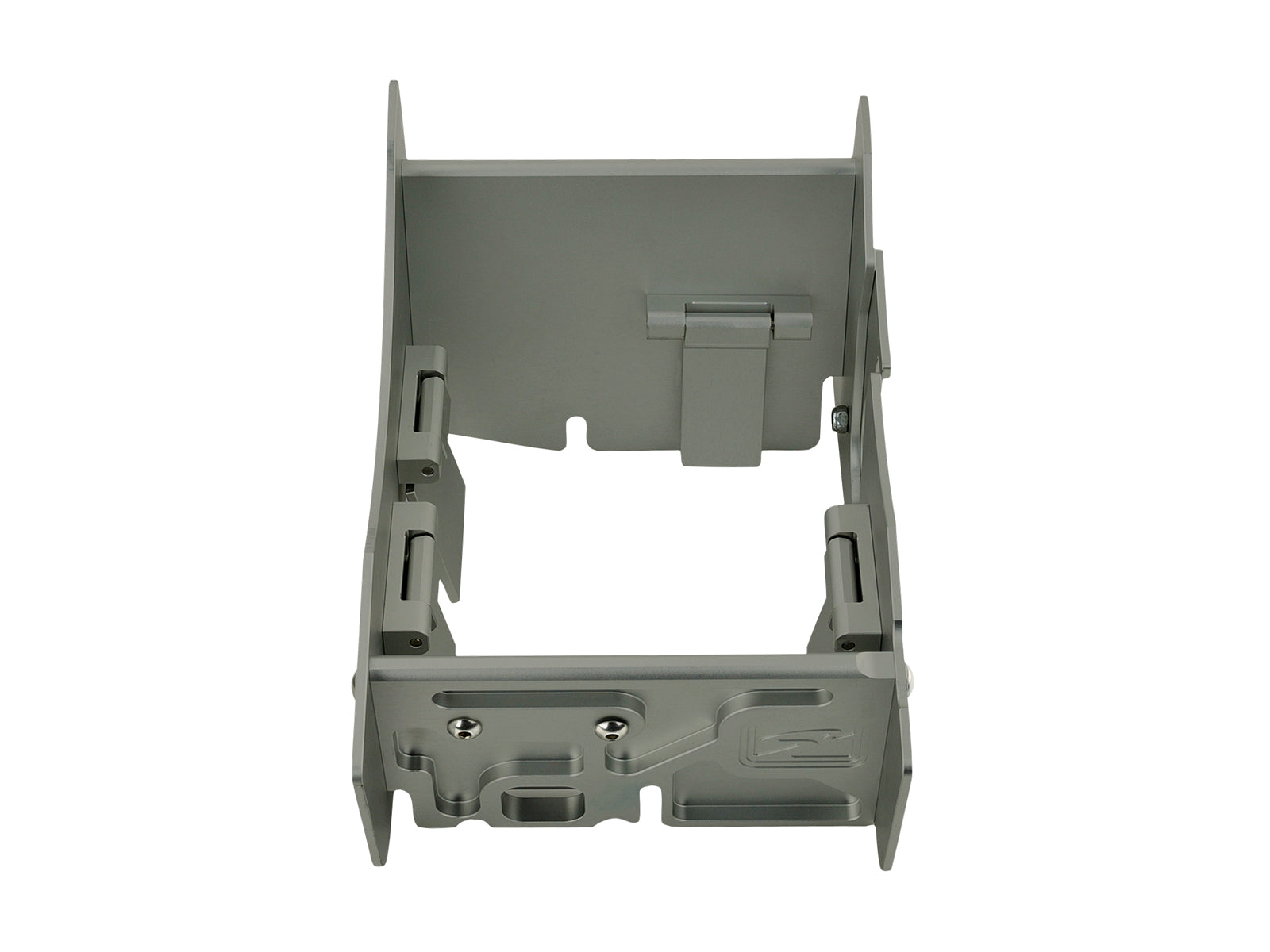

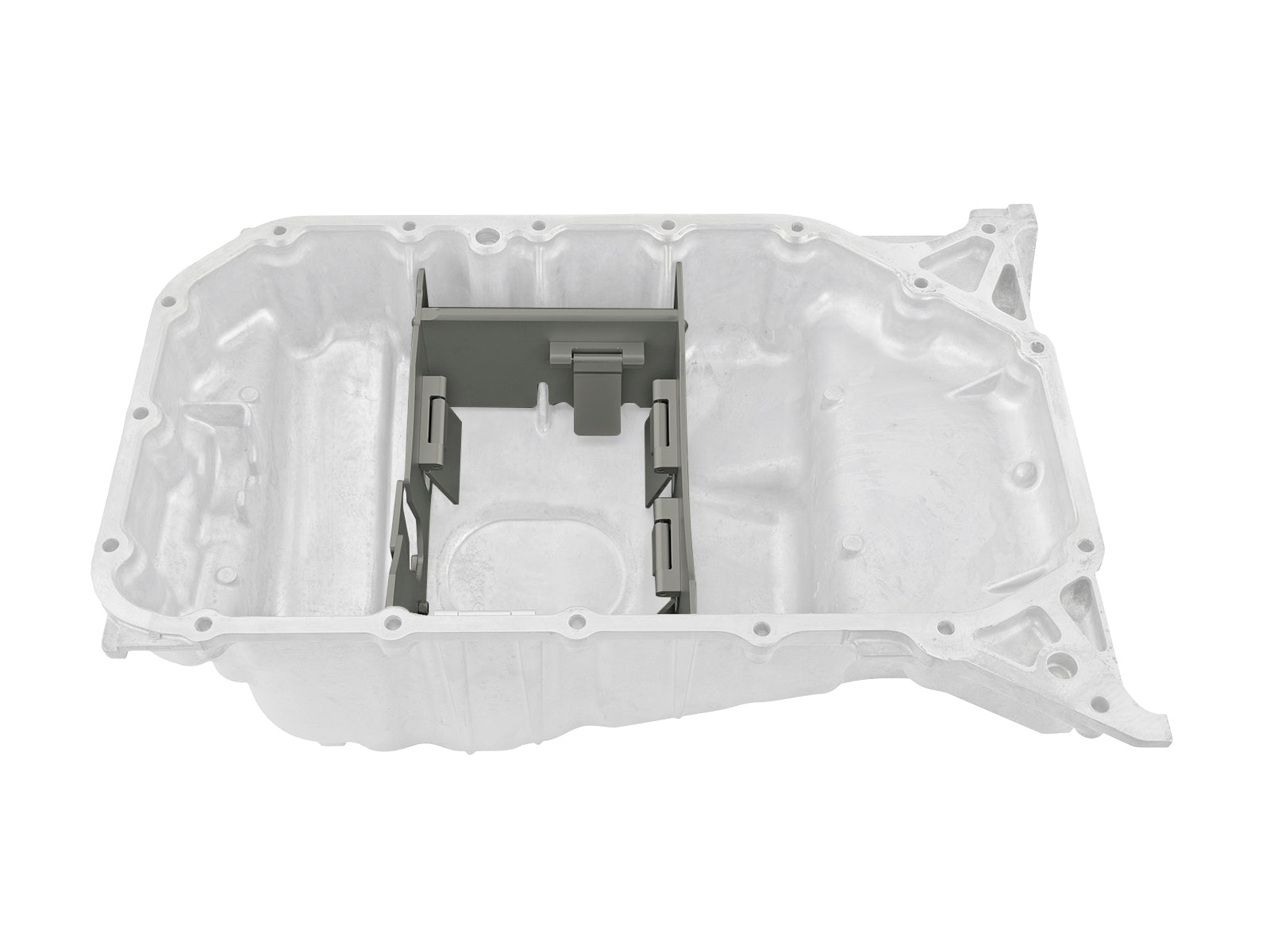

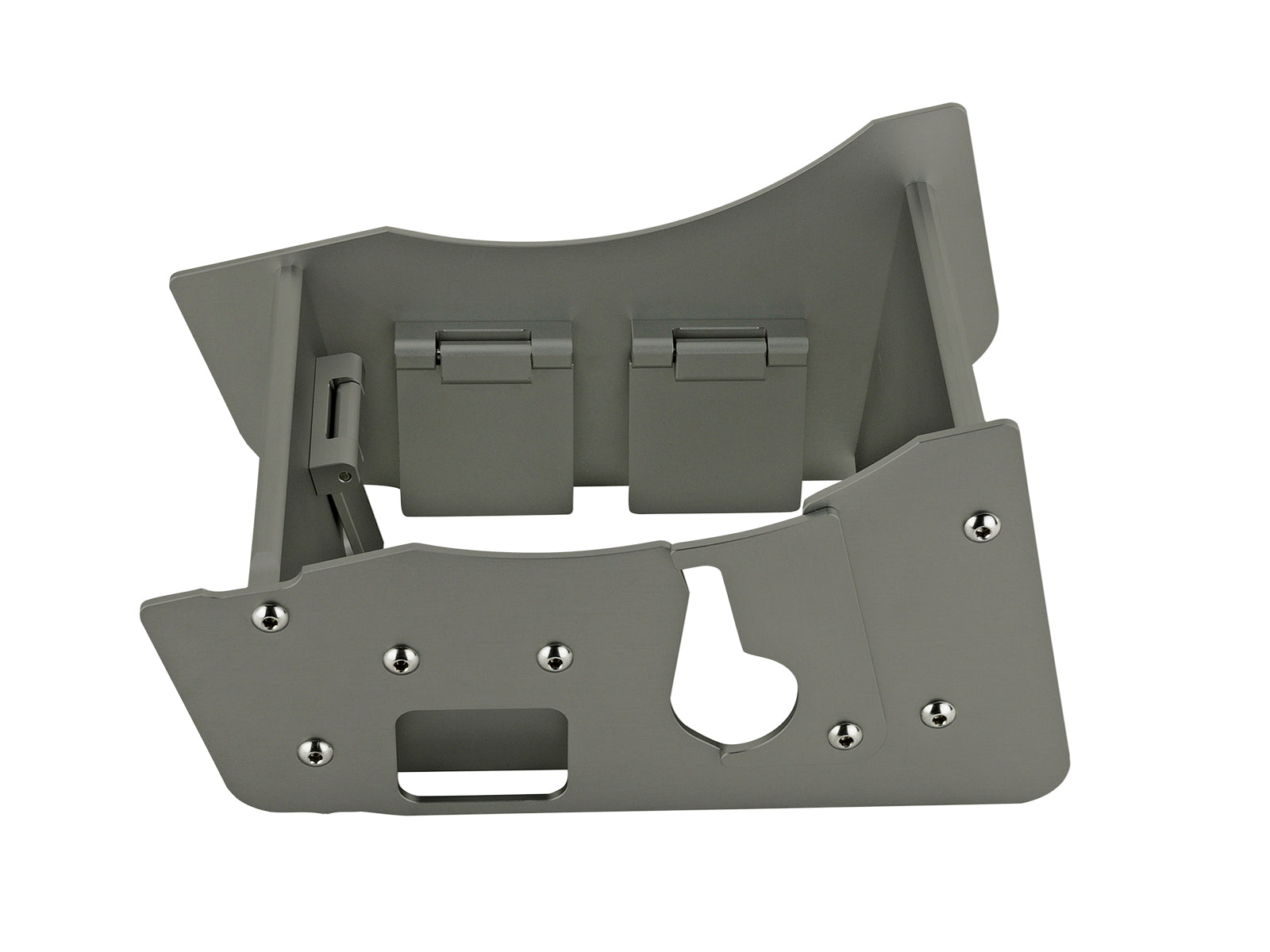

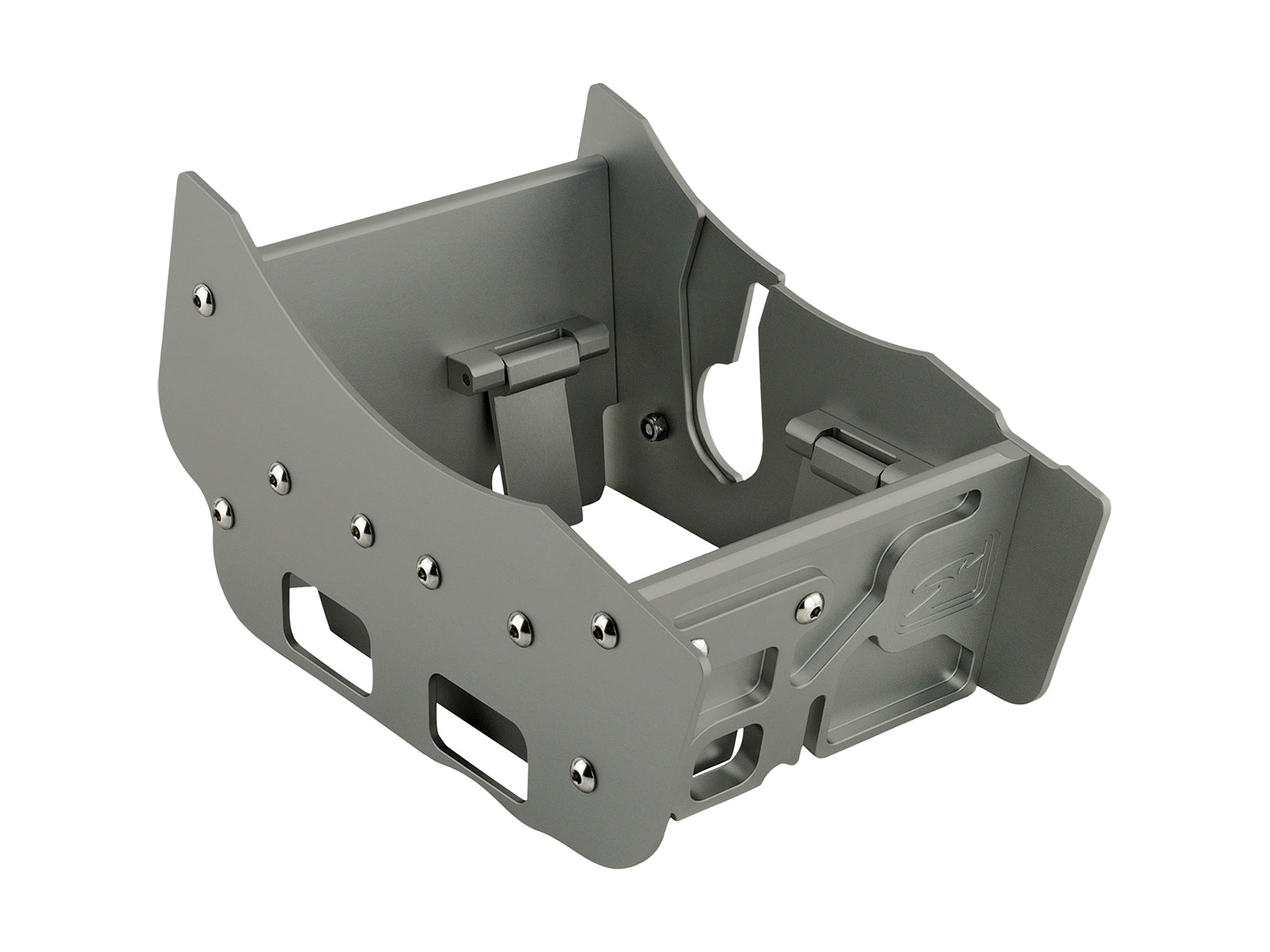

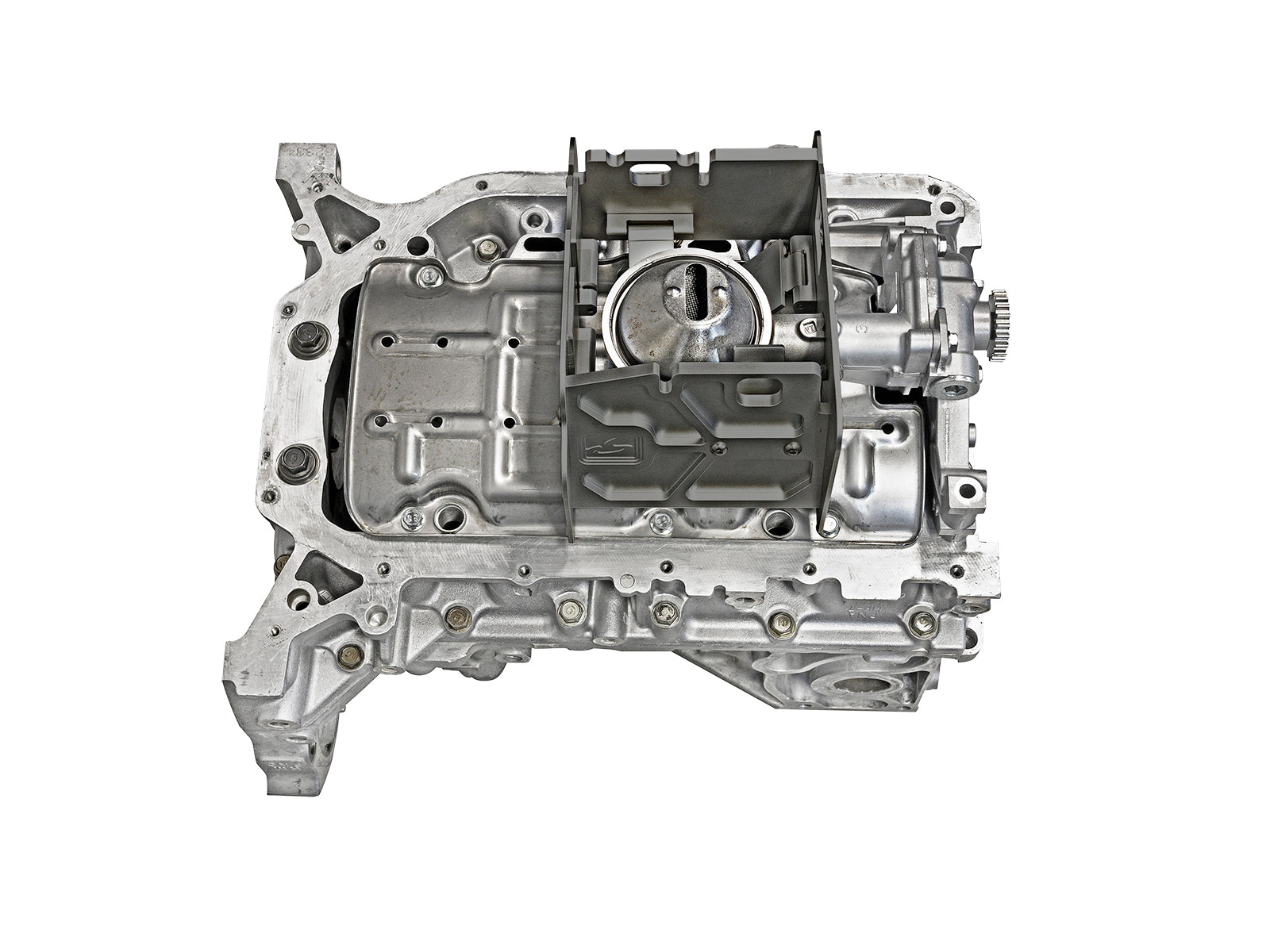

The Skunk2 Racing K-Series Billet Drop-in Oil Pan Baffle is a simple and effective way to prevent oil starvation relating to poor oil control in the oil pan. The Skunk2 baffle is made from anodized CNC machined 6061 aluminum and easily installs onto existing OEM Honda Oil Pans with no modifications required. The baffle is designed to prevent ‘daylighting’ of the oil pump inlet where the pump scavenges air as oil sloshes or climbs up the inside walls of the oil pan during hard cornering, braking, and acceleration. The design of the Skunk2 Racing Oil Pan Baffle effectively boxes in the immediate area surrounding the oil pump inlet, creating a sump within a sump, and features one-way trap doors that allow oil to freely flow into, but not out of, the inner sump area under high G loads. The Skunk2 Racing Oil Pan Baffle is recommended for any enthusiast who drives their K-Powered vehicle hard.

*Direct Drop In Fitment For: Honda K20A/K20A2/K20Z1/K24A

Features & Benefits

  • Prevents oil starvation under heavy cornering, braking, and acceleration
  • Easy drop-in design
  • Cost Effective Oil Control Solution
  • 6061-T6 Aluminum Construction
  • Fits engines using K20A/A2/Z1 Oil Pump and Pan
  • Direct drop-in fitment for JDM K20A (DC5/EP3 Type-R), K20A2 (02-04 RSX Type-S), K20Z1 (05-06 RSX Type-S) engines

Notes

K-series Engine Compatibility Notes:

The Skunk2 Billet Drop-in Baffle is a direct bolt-in application for the JDM DC5/EP3 K20A Type-R Engine as well as the USDM 02-04 K20A2 and 05-06 K20Z1 Acura RSX Type-S engines. It is compatible with other K-series engines as long as they are installed with following parts:

RSX Type-S (K20A2) Oil Pan: Acura/Honda Part Number: 1200-PRB-000

RSX Type-S (K20A2) Oil Pump: Acura/Honda Part Number: 15100-PRB-A01

RSX Type-S (K20A2) Chain: Acura/Honda Part Number: 13441-PCX-004

RSX Type-S (K20A2) Chain Guide: Acura/Honda Part Number: 13460-PNC-004

Fitment & Specs

  • 2002 - 2006 Acura RSX Type-S (K20A2, K20Z1) - USDM
  • 2001 - 2006 Honda Integra Type R DC5 (K20A) - JDM
  • 2001 - 2005 Honda Civic Type R EP3 (K20A) - JDM
  • 2001 - 2005 Honda Civic Type R EP3 (K20A2) - UKDM
