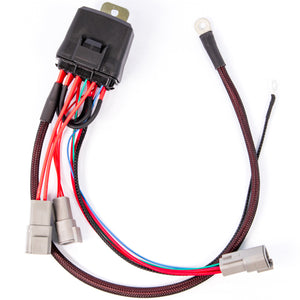

4 Channel Fuse Box

Introducing our 4 channel fuse box! Have a race car you are trying to strip down? Want to simplify your wiring? This is your answer! We make the most daunting part of your project simple and satisfying.

Our 4 channel fuse box provides easy straight forward connections to the major parts of your vehicle that need power the most. No confusion just wiring made simple. We utilize true 12AWG power wires to provide you with 4 individual channels of 20 amp power, fully fused and protected with individual relays on each channel all located in one centralized package.

Our fuse box features a 2ft power lead to ring terminal, allowing you to mount this box ideally under the dash or in passenger floor board and attaches directly to a battery, power cutoff switch, or buss bar. An 18" ground lead makes finding a ground location hassle free. This fuse box is also pre-wired to an individual DTP connector allowing you to power a fuel pump and radiator fan directly.

We did the hard part and pre wired everything to Deutsch style connections so you can build your own harness or use our pre-built ones we have linked below!

The fuse box has 4 switched power in locations on the 4 pin dtm connector, each power in wire supplies the corresponding relay with power to arm the relay. This allows us to offer 2 ways to control the fuse box, manually via a switch panel, or with a single ignition source such as your factory key switch.

If you would like to utilize a switch panel CLICK HERE.

If you would like power all 4 relays with a single switch or wire into your factory ignition system CLICK HERE.

If you would like to use our pre-configured radiator fan and fuel pump wiring kit that is a direct connection to the fuse box CLICK HERE.

4 Channels:

Pinout:
