Fuel Cell Surge Tank Lift Pump Mounts

These stainless steel mounts are designed to properly secure the lift pump to the bottom of the fuel cell. There are mounts on this page specific to both the FCST and the FCST-X.

FCST LIFT PUMP MOUNTS
The mounts below are specific to the following FCSTs ONLY: 20-014X-XX, 20-049X-XX, 20-069X-XX, and 20-099X-XX. NOTE: Lift pump mounting information for the newer FCST-X (20-199X-XX) can be found at the bottom of this page.
The kits below include 2 laser cut polished stainless steel brackets.
NOTE: The lift pump mounts included with the purchase of an FCST are designed for fuel cells no deeper than 9" (229mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock.

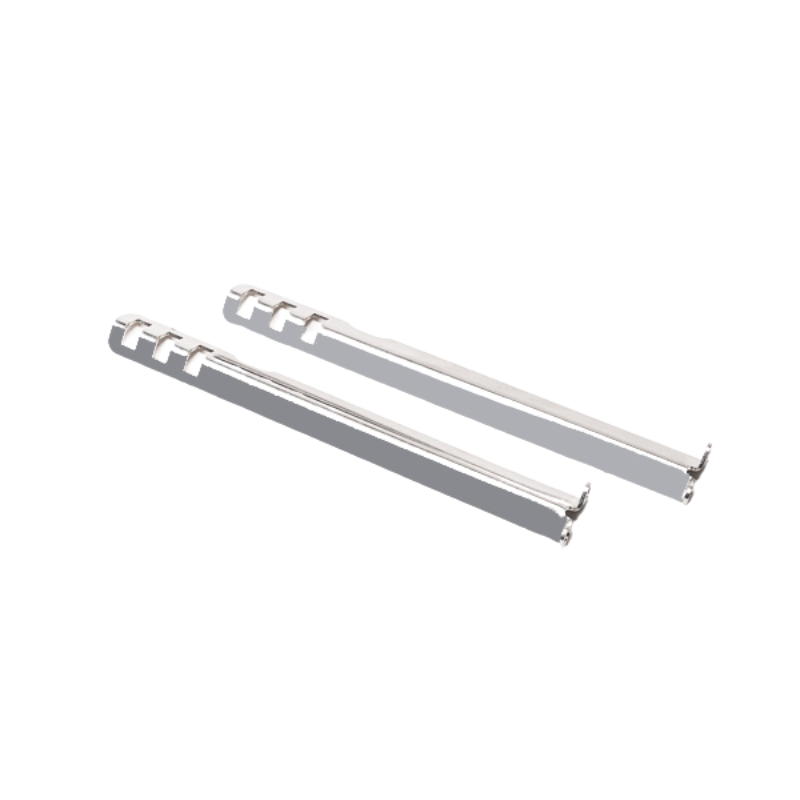

20-1014 FCST LIFT PUMP MOUNTS, MID-DEPTH
These lift pump mounts were designed specifically for 14 gallon and 22-gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). However, they permit the FCST lift pump to be mounted into a fuel cell with an internal depth of up to 12.7" (323mm).

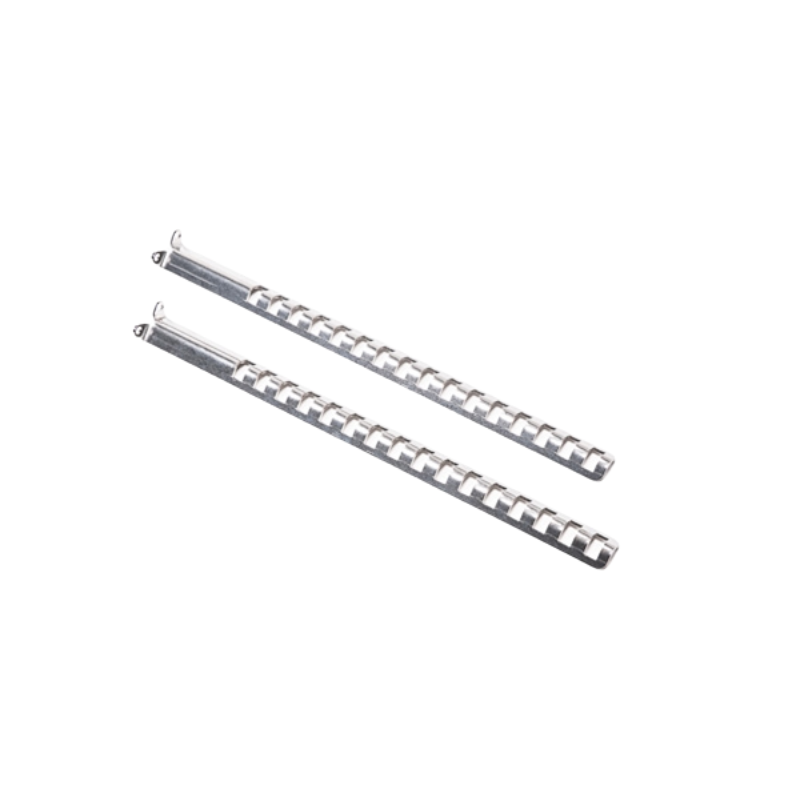

20-0214 FCST LIFT PUMP MOUNTS, ALL DEPTHS
These lift pump mounts permit an additional 8" (203mm) over the standard mounts provided with the FCST. They will properly place the lift pump at a fuel cell depth up to 17" (432mm). If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc.

NOTE: Longer hose and/or wiring may be necessary.
